Op-Deck to The Curly House

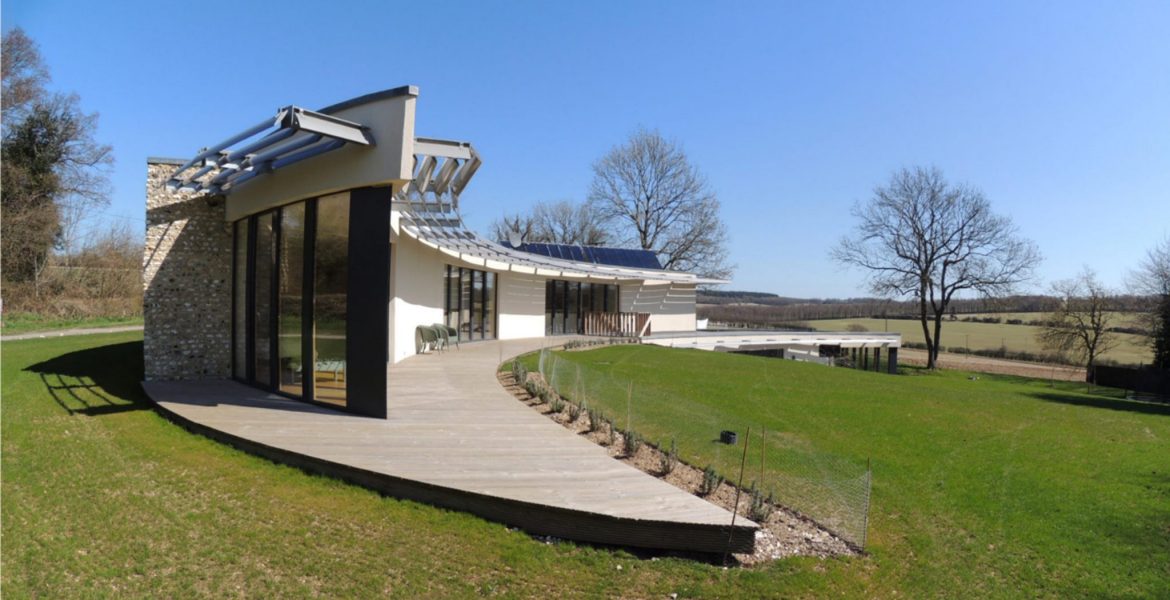

Initial project meetings first started in early 2008, the clients owned a small cottage on the site which had been extended several times during the 80’s and had permission to make further adaptations. The mixture of building standards meant that their home was extremely drafty and very energy inefficient. The site itself is particularly exposed. The design which achieved planning permission was a crescent form which steps and slides into the slopes on the site. The crescent formation is in direct response to solar orientation.

The brief was to design a building which would accommodate the family for many years into the future, the planned occupancy would be for 5 adults. Additionally, the home will be used for large family occasions. A requirement was set for a minimum 16 seated spaces to be available for dining during these family occasions.

Op-Deck was added into the scheme very early into the design process as the way of creating the highly insulated structural floor as the house was being designed under Passivhaus standards. The overall U-value of the property is 0.1w/m2K as standard. The system was installed on the lower and ground floors and also the roof.

The challenge was to design an affordable and very low energy building on a highly exposed site that is subjected to bitingly cold winters and very hot summers. By using OP-Deck in combination with other materials we were able to achieve this quite easily.

By combining Nudura ICF and OP-Deck it was possible to reduce thermal bridging to a minimum. It allowed the brise au soleil main support system to be bolted back to the concrete core and the thermal bridge was further reduced by using stainless steel anchors. Initial air tightness tests show the project achieving 0.3m3/m2/hr at 50 pascals. The use of the Nudura ICF in combination with our OpDeck floor system provided excellent base level air tightness, with extremely low movement within the structure itself. The contractor sourced and installed OptiWin Passivhaus certified windows which were also a key ingredient to the air tightness approach.

Total floor area: 410m2

Build date: 2010 – 2011
