Triangle House, West Sussex.

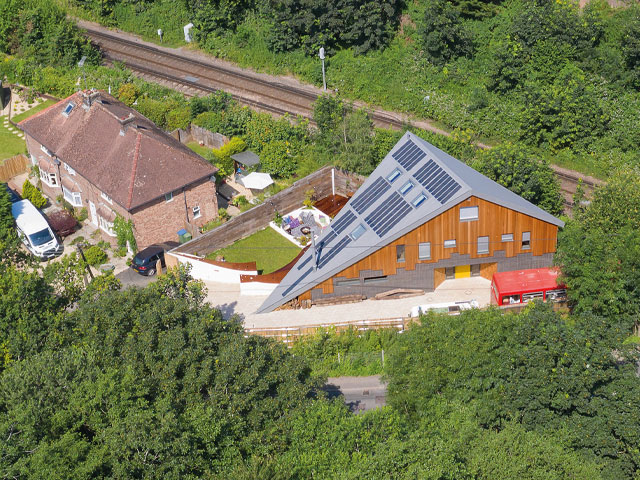

It isn’t very often that you get involved in something truly off the wall and out there. With this new timber framed “triangle” shaped house in West Sussex we certainly had that.

Due to the shape of the site, the proximity of a railway line to the rear of the property, and not to mention the main sewer line that runs through the site the new house was designed to be triangular, not just in plan but also the walls and roof. Luckily the person taking on this stunning project was up to the task.

Done as a true self-build the timber frame was built in just a few weeks meaning that we were able to supply the Lewis Deck only 6 weeks from starting on site.

In total we supplied 120m2 of deck, which were then laid on the top 2 floors of the house, along with both of our flanking and rubber resilient strips to maximise the acoustic performance through the two floor zones.

With no straight-walled rooms and a dramatic sloping zinc roof that touches the ground on one side, their eye-catching home was featured on the Channel Four programme Grand Designs where presenter Kevin McCloud described it as one of the trickiest plots ever seen on the show and the resulting home as a ‘giant 3D geometrical puzzle.’



The house, as it is very close to a railway line, needed to be as acoustically sound as possible. The Lewis Deck with screed allowed us to do this as well as stopping any vibration. It also meant we didn't have to compromise on the quality of the build.

Olaf

As this was such a “one off” project it has been featured in a number of media publications. As well as Channel 4’s Grand Designs the links below are to The Times and Great British Life articles.

Billingshurst | Grand Designs

The Grand Designs Triangle house in Billingshurst, Sussex (granddesignsmagazine.com)

How we built our amazing triangle house in West Sussex (thetimes.co.uk)

Meet the Sussex couple who built a triangular house | Great British Life
